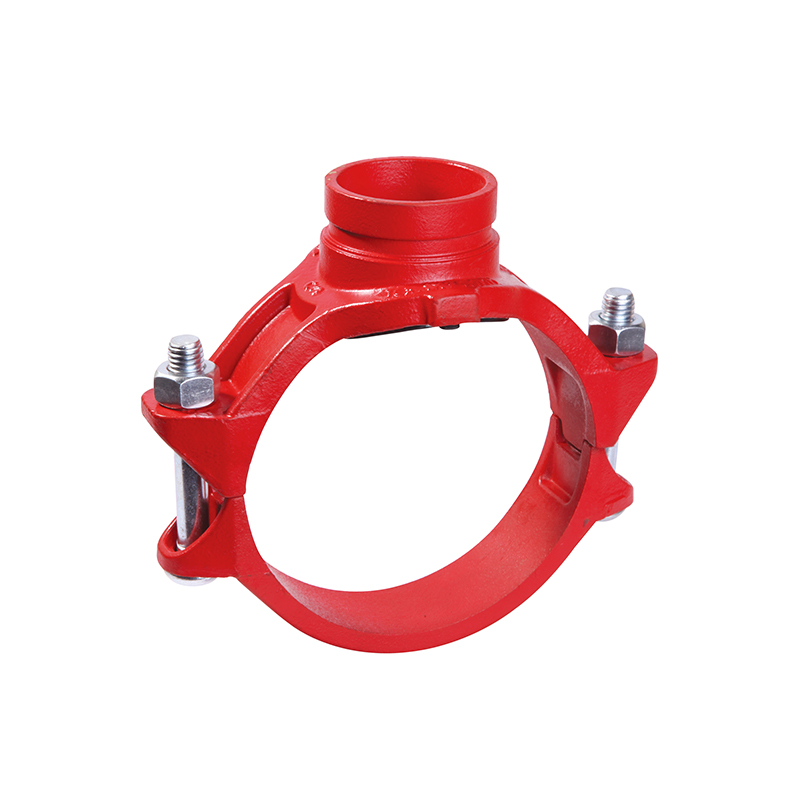

MECH GROOVED MECH TEE (GRVD) -MODEL 3G

Model 3G

Design standard: ASTM F1548, AWWA C606, ISO 6182-12
Material: Ductile iron ASTM A536 Gr. 65-45-12
Coating: Electrophoretic (std.) — epoxy / hot-dip galvanized optional
Gasket: Grade "E" EPDM (fire sprinkler)
Sizes: 2" × 1-1/4" – 10" × 4" (DN50×32 – DN250×100)

Request a quote for this product

Size Quantity

Certificates & approvals

Ask us for this product's certificates.

Build a submittal PDF for this product Certificates centre

SIZES & DIMENSIONS

Sizes & dimensions

Size	DN	Pipe OD (mm)	Max working pressure (PSI)	Hole diameter (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Bolt size	Certificate
2" × 1-1/4"	DN50×32	60.3×42.4	400	45	116	76	69.5	39	3/8×55 / M10X57	UL / FM / VdS
2" × 1-1/2"	DN50×40	60.3×48.3	400	45	116	76	69.5	39	3/8×55 / M10X57	UL / FM / VdS
2-1/2" × 1"	DN65×25	73.0×33.7	300	38	137	71	78	49	1/2×70 / M12X70	UL
2-1/2" × 1-1/4"	DN65×32	73.0×42.4	400	51	137	84.5	78	49	1/2×70 / M12X70	UL / FM
2-1/2" × 1-1/2"	DN65×40	73.0×48.3	400	51	137	84.5	78	49	1/2×70 / M12X70	UL / FM
2-1/2" × 1"	DN65×25	76.1×33.7	300	38	137	71	78	49.5	1/2×70 / M12X70	UL / FM / VdS
2-1/2" × 1-1/4"	DN65×32	76.1×42.4	300	51	137	84.5	78	49.5	1/2×70 / M12X70	UL / FM / VdS
2-1/2" × 1-1/2"	DN65×40	76.1×48.3	300	51	137	84.5	78	49.5	1/2×70 / M12X70	UL / FM / VdS
3" × 1"	DN80×25	88.9×33.7	300	38	152	72.5	84.5	56.5	1/2×75 / M12X76	UL / FM / VdS
3" × 1-1/4"	DN80×32	88.9×42.4	400	51	152	85.5	84.5	56.5	1/2×75 / M12X76	UL / FM / VdS
3" × 1-1/2"	DN80×40	88.9×48.3	400	51	152	85.5	84.5	56.5	1/2×75 / M12X76	UL / FM / VdS
3" × 2"	DN80×50	88.9×60.3	300	64	152	98	84.5	56.5	1/2×75 / M12X76	UL / FM / VdS
4" × 1"	DN100×25	114.3×33.7	300	38	188	78.4	102	70	1/2×75 / M12X76	UL / FM / VdS
4" × 1-1/4"	DN100×32	114.3×42.4	400	51	188	89	102	70	1/2×75 / M12X76	UL / FM / VdS
4" × 1-1/2"	DN100×40	114.3×48.3	400	51	188	89	102	70	1/2×75 / M12X76	UL / FM / VdS
4" × 2"	DN100×50	114.3×60.3	300	64	188	104.5	102	70	1/2×75 / M12X76	UL / FM / VdS
4" × 2-1/2"	DN100×65	114.3×73.0	400	70	188	104.5	102	70	1/2×75 / M12X76	UL / FM
4" × 2-1/2"	DN100×65	114.3×76.1	300	70	188	104.5	102	70	1/2×75 / M12X76	UL / FM / VdS / LPCB
4" × 3"	DN100×80	114.3×88.9	400	89	188	128	102	70	1/2×75 / M12X76	UL / FM / VdS / LPCB
5" × 1-1/4"	DN125×32	139.7×42.4	300	51	221.5	95	118	84	5/8×85 / M16X85	UL / FM
5" × 1-1/2"	DN125×40	139.7×48.3	300	51	221.5	95	118	84	5/8×85 / M16X85	UL / FM
5" × 2"	DN125×50	139.7×60.3	300	64	221.5	112.5	118	84	5/8×85 / M16X85	UL / FM / VdS
5" × 2-1/2"	DN125×65	139.7×76.1	300	70	221.5	112.5	118	84	5/8×85 / M16X85	VdS / LPCB
5" × 3"	DN125×80	139.7×88.9	300	89	221.5	132	118	84	5/8×85 / M16X85	UL / FM / VdS / LPCB
5" × 4"	DN125×100	139.7×114.3	300	114	221.5	160	125	84	5/8×85 / M16X85	UL / FM / VdS / LPCB
6" × 2"	DN150×50	159.1×60.3	300	64	244	112.5	125	94	5/8×105 / M16X108	UL / FM
6" × 4"	DN150×100	159.1×108.0	300	114	244	154	133	94	5/8×105 / M16X108	UL / FM
6" × 4"	DN150×100	159.1×114.3	300	114	244	159	125	94	5/8×105 / M16X108	UL / FM
6" × 2"	DN150×50	165.1×60.3	300	64	244	112.5	127	97.5	5/8×105 / M16X108	UL / FM
6" × 2-1/2"	DN150×65	165.1×76.1	300	70	244	112.5	130	97.5	5/8×105 / M16X108	LPCB
6" × 3"	DN150×80	165.1×88.9	300	89	244	132	130	97.5	5/8×105 / M16X108	UL / FM / LPCB
6" × 4"	DN150×100	165.1×114.3	300	114	244	154	135	97.5	5/8×105 / M16X108	UL / FM / LPCB
6" × 1-1/2"	DN150×40	168.3×48.3	400	51	247	95	128	98.5	5/8×105 / M16X108	UL / FM / VdS
6" × 2"	DN150×50	168.3×60.3	300	64	247	114	134	98.5	5/8×105 / M16X108	UL / FM / VdS
6" × 2-1/2"	DN150×65	168.3×73.0	400	70	247	112.5	135	98.5	5/8×105 / M16X108	UL / FM
6" × 2-1/2"	DN150×65	168.3×76.1	300	70	247	112.5	135	98.5	5/8×105 / M16X108	UL / FM / VdS / LPCB
6" × 3"	DN150×80	168.3×88.9	400	89	247	132	136.5	98.5	5/8×105 / M16X108	UL / FM / VdS / LPCB
6" × 4"	DN150×100	168.3×114.3	400	114	247	160	138	98.5	5/8×105 / M16X108	UL / FM / VdS / LPCB
8" × 2"	DN200×50	219.1×60.3	400	64	320	118	158	125	3/4×115 / M20X115	UL / FM / VdS
8" × 2-1/2"	DN200×65	216.3×76.1	300	70	315	117	157	122	3/4×115 / M20X115	—
8" × 2-1/2"	DN200×65	219.1×73.0	400	70	320	118	158	125	3/4×115 / M20X115	UL / FM
8" × 2-1/2"	DN200×65	219.1×76.1	300	70	320	118	158	125	3/4×115 / M20X115	UL / FM / VdS / LPCB
8" × 3"	DN200×80	219.1×88.9	300	89	320	136.5	161	125	3/4×115 / M20X115	UL / FM / VdS / LPCB
8" × 4"	DN200×100	219.1×108.0	300	114	320	162	161	125	3/4×115 / M20X115	UL / FM
8" × 4"	DN200×100	219.1×114.3	300	114	320	162	161	125	3/4×115 / M20X115	UL / FM / VdS / LPCB
10" × 2-1/2"	DN250×65	273.0×76.1	300	70	376	118	189	155	3/4×120 / M20X115	UL / FM
10" × 3"	DN250×80	273.0×88.9	300	89	376	136.5	189	155	3/4×120 / M20X115	UL / FM
10" × 4"	DN250×100	273.0×108	300	114	376	164	189	155	3/4×120 / M20X115	UL / FM
10" × 4"	DN250×100	273.0×114.3	300	114	376	164	189	155	3/4×120 / M20X115	UL / FM / VdS

About this product

Ductile iron grooved piping system is reliable and is faster to install than welding, threading or flanging, resulting in lowest installed cost. It can be adopted to suit standard pipe with cut grooves or standard and light wall pipe with rolled grooves. We are the exclusive agent of the MECH brand ductile iron grooved fittings which has the UL/FM certificates.

DI GROOVED MECHANICAL TEE-GROOVED OUTLET#3G

Dimensions: 1″(DN25) – 10″(DN250) Design Standard: ISO6182, AWWA C606, GB 5135.11 Connection Standard: ASME B36.10, ASTM A53-A53M, ISO 4200 Working Pressure: 175PSI-300PSI
