Model 1G
Ask us for this product's certificates.
| Size | DN | Pipe OD (mm) | Max working pressure (PSI) | Max end load (kN/lbs) | Pipe end separation (mm) | A (mm) | B (mm) | C (mm) | Bolts (No.-Size) | Certificate |
|---|---|---|---|---|---|---|---|---|---|---|
| 1" | DN25 | 33.7 | 500 | 3.0/680 | 0-1.6 | 59 | 100 | 44 | 2-3/8X55 / 2-M10X57 | VdS / UL / FM / LPCB |
| 1-1/4" | DN32 | 42.4 | 500 | 4.8/1080 | 0-1.6 | 66 | 109.5 | 45 | 2-3/8X55 / 2-M10X57 | VdS / UL / FM / LPCB |
| 1-1/2" | DN40 | 48.3 | 500 | 6.3/1420 | 0-3.2 | 72 | 115 | 45 | 2-3/8X55 / 2-M10X57 | VdS / UL / FM / LPCB |
| 2" | DN50 | 60.3 | 500 | 9.8/2210 | 0-3.2 | 85 | 131 | 45 | 2-3/8X55 / 2-M10X57 | VdS / UL / FM / LPCB |
| 2-1/2" | DN65 | 73.0 | 500 | 14.4/3240 | 0-3.2 | 98 | 145 | 45 | 2-3/8X55 / 2-M10X57 | UL / FM / LPCB |
| 2-1/2" | DN65 | 76.1 | 500 | 15.7/3520 | 0-3.2 | 101 | 147 | 45 | 2-3/8X55 / 2-M10X57 | VdS / UL / FM / LPCB |
| 3" | DN80 | 88.9 | 500 | 21.4/4810 | 0-3.2 | 115.0 | 170 | 46 | 2-1/2X70 / 2-M12X70 | VdS / UL / FM / LPCB |
| 4" | DN100 | 108.0 | 500 | 31.5/7100 | 0-3.2 | 140 | 197 | 52 | 2-1/2X70 / 2-M12X70 | UL / FM / LPCB |
| 4" | DN100 | 114.3 | 500 | 35.4/7960 | 0-3.2 | 146 | 200 | 52 | 2-1/2X70 / 2-M12X70 | VdS / UL / FM / LPCB |
| 5" | DN125 | 133 | 300 | 28.7/6460 | 0-3.2 | 165 | 232 | 52 | 2-5/8X85 / 2-M16X85 | UL / FM / LPCB |
| 5" | DN125 | 139.7 | 500 | 52.9/11800 | 0-3.2 | 170 | 238 | 52 | 2-5/8X85 / 2-M16X85 | VdS / UL / FM / LPCB |
| 5" | DN125 | 141.3 | 500 | 54.1/12100 | 0-3.2 | 172 | 236.5 | 52 | 2-5/8X85 / 2-M16X85 | UL / FM / LPCB |
| 6" | DN150 | 159.0 | 300 | 41.0/9240 | 0-3.2 | 190 | 258 | 52 | 2-5/8X85 / 2-M16X85 | UL / FM / LPCB |
| 6" | DN150 | 165.1 | 500 | 73.8/16610 | 0-3.2 | 198 | 266 | 52 | 2-5/8X85 / 2-M16X85 | UL / FM / LPCB |
| 6" | DN150 | 168.3 | 500 | 76.7/17260 | 0-3.2 | 202.0 | 270 | 52 | 2-5/8X85 / 2-M16X85 | VdS / UL / FM / LPCB |
| 8" | DN200 | 219.1 | 500 | 116.9/26280 | 0-3.2 | 260.0 | 346 | 62 | 2-3/4X115 / 2-M20X115 | VdS / UL / FM / LPCB |
| 10" | DN250A | 267.4 | 300 | 116/26130 | 0-3.2 | 318 | 396 | 63 | 2-3/4X120 / 2-M20X115 | UL / FM |
| 10" | DN250 | 273.0 | 500 | 163.8/36800 | 0-3.2 | 327 | 420 | 63 | 2-7/8X125 / 2-M22X125 | UL / FM / VdS |
| 12" | DN300A | 318.5 | 300 | 164.8/37080 | 0-3.2 | 364 | 456 | 63 | 2-7/8X140 / 2-M22X140 | UL / FM |
| 12" | DN300 | 323.9 | 500 | 230.6/51880 | 0-3.2 | 378 | 466 | 63 | 2-7/8X140 / 2-M22X140 | UL / FM |
| 14" | DN350 | 355.6 | 300 | 205.5/46220 | 0-3.2 | 415 | 510 | 72 | 3-7/8X140 / 3-M22X140 | UL / FM |
| 14" | DN350 | 377.0 | 225 | 178.5/40160 | 0-3.2 | 435 | 535 | 72 | 3-7/8×140 / 3-M22×140 | UL / FM |
| 16" | DN400 | 406.4 | 300 | 268.4/60370 | 0-3.2 | 468 | 575 | 72 | 3-7/8X140 / 3-M22X140 | UL / FM |
| 18" | DN450 | 457.2 | 225 | 262.5/59060 | 0-3.2 | 508 | 608 | 78 | 3-7/8X140 / 3-M22X140 | UL |
| 20" | DN500 | 508.0 | 225 | 324.1/72910 | 0-3.2 | 563 | 660 | 78 | 4-7/8X140 / 4-M22X140 | UL |
| 22" | DN550 | 558.8 | 362 | 612.8/137881 | 0-6.2 | 623.8 | 724 | 77 | 4-7/8X140 | — |
| 24" | DN600 | 609.6 | 225 | 466.7/104990 | 0-3.2 | 668 | 772 | 78 | 4-1X140 | UL |
| 24" | DN600 | 630 | 225 | 498.5/112140 | 0-3.2 | 692 | 796 | 78 | 4-1×140 | UL |
| 28" | DN700 | 711.2 | 225 | 635/142900 | 8-12 | 798 | 960 | 133 | 6-11/2X53/4 | — |
| 32" | DN800 | 812.8 | 225 | 830/186700 | 8-12 | 900 | 1058 | 133 | 6-11/2X53/4 | — |
Ductile iron grooved piping system is reliable and is faster to install than welding, threading or flanging, resulting in lowest installed cost. It can be adopted to suit standard pipe with cut grooves or standard and light wall pipe with rolled grooves. We are the exclusive agent of the MECH brand ductile iron grooved fittings which has the UL/FM certificates.

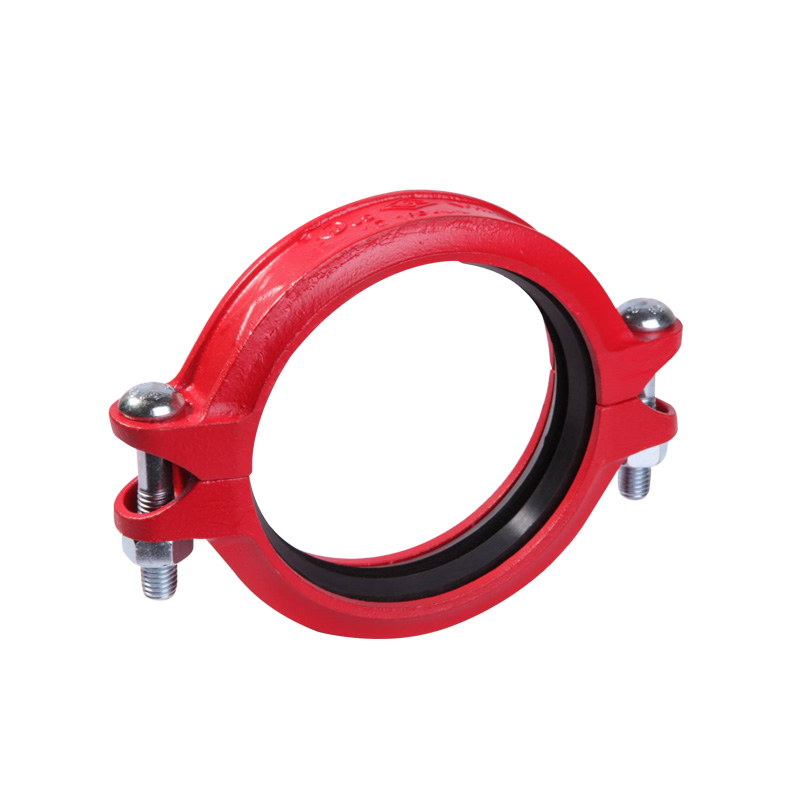

DI STANDARD RIGID COUPLING, FIG# 1G
