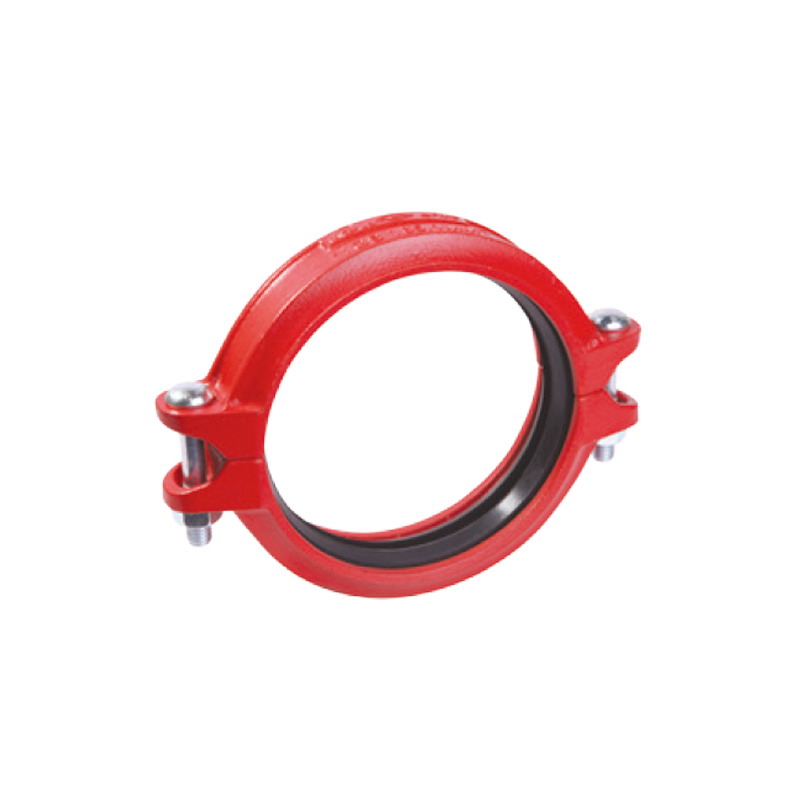

Model 1GX
Ask us for this product's certificates.
| Size | DN | Pipe OD (mm) | Max working pressure (PSI) | A (mm) | B (mm) | C (mm) | Bolts (No.-Size) | Certificate |
|---|---|---|---|---|---|---|---|---|
| 1-1/4" | DN32 | 42.4 | 300 | 65 | 103.5 | 44.5 | 2-3/8X55 / 2-M10X57 | UL / FM |
| 1-1/2" | DN40 | 48.3 | 300 | 70.8 | 108 | 44.5 | 2-3/8X55 / 2-M10X57 | UL / FM |
| 2" | DN50 | 60.3 | 300 | 82.5 | 129 | 44.5 | 2-3/8X55 / 2-M10X57 | UL |
| 2-1/2" | DN65 | 73.0 | 363 | 94.5 | 136 | 44 | 2-3/8X55 / 2-M10X57 | UL |
| 2-1/2" | DN65 | 76.1 | 300 | 98 | 138 | 44 | 2-3/8X55 / 2-M10X57 | UL / FM |
| 3" | DN80 | 88.9 | 300 | 110 | 152 | 45 | 2-3/8X55 / 2-M10X57 | UL / FM |
| 4" | DN100 | 108.0 | 300 | 130 | 174 | 47 | 2-3/8X55 / 2-M10X57 | UL / FM |
| 4" | DN100 | 114.3 | 300 | 140 | 183 | 47 | 2-3/8X55 / 2-M10X57 | UL / FM |
| 5" | DN125 | 133 | 300 | 160 | 212 | 49 | 2-1/2X70 / 2-M12X70 | UL / FM |
| 5" | DN125 | 139.7 | 300 | 165 | 217 | 49 | 2-1/2X70 / 2-M12X70 | UL / FM |
| 6" | DN150 | 159.0 | 300 | 186 | 238 | 50 | 2-1/2X70 / 2-M12X70 | UL / FM |
| 6" | DN150 | 165.1 | 300 | 195 | 247 | 50 | 2-1/2X70 / 2-M12X70 | UL / FM |
| 8" | DN200 | 219.1 | 300 | 251 | 316 | 58 | 2-5/8X80 / 2-M16X85 | UL / FM |
| 10" | DN250 | 273.0 | 300 | 311 | 384 | 57.5 | 2-3/4X115 / 2-M20X115 | UL / FM |
Ductile iron grooved piping system is reliable and is faster to install than welding, threading or flanging, resulting in lowest installed cost. It can be adopted to suit standard pipe with cut grooves or standard and light wall pipe with rolled grooves. We are the exclusive agent of the MECH brand ductile iron grooved fittings which has the UL/FM certificates.
DI GROOVED FITTINGS AND COUPLINGS-NEW TYPE RIGID COUPLING, FIG#1GXASME B36.10、ASTM A53-A53M、ISO 4200、GB/T 3091
