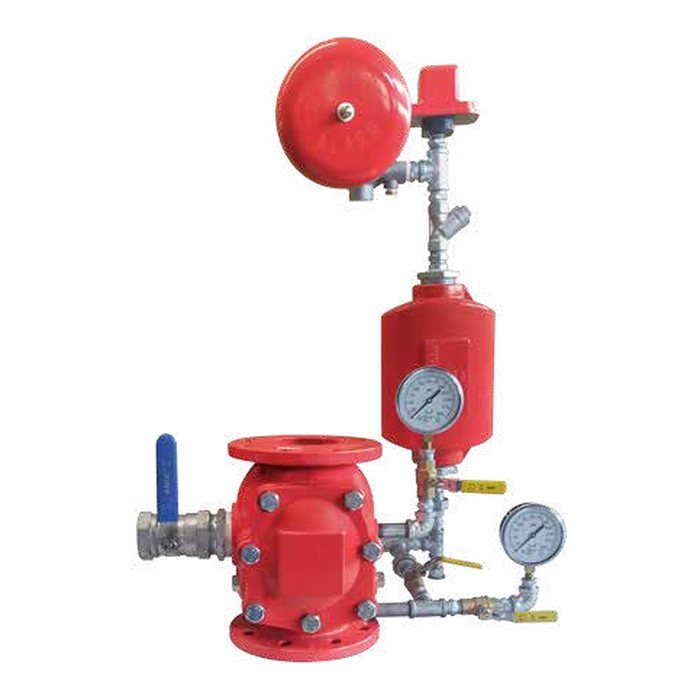

MECH FLANGED WET ALARM CHECK VALVE UL RED MODEL ZSFZ4X9

Model ZSFZ4X9

Connection ends
Flange ASME B16.1 CL125 / ASME B16.42 CL150
Working pressure
300 PSI (200 / 250 PSI on request)
Temperature
4 – 60 °C
Coating
Painting or FBE — ANSI/AWWA C550
Installation
Vertical (per UL listing)
Approvals
UL
Listed models
ZSFZ4X9 with ANSI flange (3", 4", 6" — 300 psig), ZSFZ4X9 with BS flange (3"–8" — 232 psig)
Sizes
3" – 8" (DN80 – DN200)
Request a quote for this product
Or buy from the online store
SIZES & DIMENSIONS

Sizes & dimensions

SizeDNH Height (mm)L Length (mm)D Flange diameter (mm)D1 Bolt circle (mm)b Flange thickness (mm)n-ΦL Bolt holes
3"DN80235241191152.4194-Φ19.1
4"DN100241292229190.5248-Φ19.1
6"DN150298356279241.325.58-Φ22.2
8"DN200352495343298.528.58-Φ22.2
PROJECT APPROVALS

Approved on projects

98 projects and 61 owners approved this product or its family through the project consultants.

and 86 more projects.

Original approval letters are provided on request with your submittal.

The MECH flanged wet alarm check valve ul red, model ZSFZ4X9, sizes 3″ – 8″ (DN80 – DN200), working pressure 300 PSI (200 / 250 PSI on request), UL approved. The heart of a wet sprinkler valve room: it holds pressure in the system and raises the alarm when water flows. This guide explains what it does and how it works, related models, technical data, the critical point in selection and installation, and common mistakes. For more, read the guide wet alarm check valves.

At a glance

  • A wet alarm check valve acts as a check valve that keeps the sprinkler system full and under pressure.
  • Sizes 3″ – 8″ (DN80 – DN200).
  • Working pressure 300 PSI (200 / 250 PSI on request).
  • Approvals: UL.
  • Connection: Flange ASME B16.1 CL125 / ASME B16.42 CL150.
  • Operating temperature: 4 – 60 °C.

Wet alarm check valve: what it does and how it works

A wet alarm check valve acts as a check valve that keeps the sprinkler system full and under pressure. When a sprinkler opens the clapper lifts, water flows into the system and into the alarm line, operating the pressure switch and water motor gong.

It is installed with its trim: pressure gauges, drain and test valve, a retard chamber that prevents false alarms from pressure surges, and an alarm pressure switch.

Related models

wet alarm check valve family
ModelProductSizesPressureApprovals
ZSFZ4X9 — this productFLANGED WET ALARM CHECK VALVE UL RED3″ – 8″ (DN80 – DN200)300 PSIUL
ZSFZ8X9WET ALARM CHECK VALVE GROOVED UL/FM RED ANSI3″ – 8″ (DN80 – DN200)300 PSIUL / FM

Technical data

Specification of model ZSFZ4X9
ItemSpecification
Connection endsFlange ASME B16.1 CL125 / ASME B16.42 CL150
Working pressure300 PSI (200 / 250 PSI on request)
Temperature4 – 60 °C
CoatingPainting or FBE — ANSI/AWWA C550
InstallationVertical (per UL listing)
ApprovalsUL
Listed modelsZSFZ4X9 with ANSI flange (3″, 4″, 6″ — 300 psig), ZSFZ4X9 with BS flange (3″–8″ — 232 psig)
Sizes3″ – 8″ (DN80 – DN200)

Dimensions for every size are in the size table at the top of the page.

Orientation and trim

Install the valve in the orientation of its listing (vertical per the product data) with its full trim as shown on the datasheet. Any change to the trim or orientation takes it outside its listing.

Caution

Test the alarm after installation from the test valve and confirm the pressure switch signal reaches the alarm panel.

Installation steps

  1. Install vertically with the arrow in the direction of flow.
  2. Fit the trim as shown on the datasheet drawing, including the retard chamber and pressure switch.
  3. Fit a supervised control valve upstream to isolate the system for maintenance.
  4. Fill the system slowly, then test the alarm and drain.

Common mistakes

  • Installing it against the flow or in an unlisted orientation.
  • Omitting the retard chamber, causing false alarms.
  • Not testing the alarm after installation.

Files and ordering

On this page: Product page (catalogue), Installation & operation manual, MECH Fire Protection Valves Catalogue (UL/FM), Material Safety Data Sheet (MSDS). Add the product to your request list with size and quantity and we send a quotation, or build a submittal PDF for the consultant. Fu-Mech is the exclusive MECH agent in Saudi Arabia.

Frequently asked questions

What does the retard chamber do?

It absorbs short pressure surges so they do not reach the alarm switch, preventing false alarms. See wet alarm check valves.

Can it be used on a dry system?

No. A wet alarm valve is for wet systems that are always full of water.

What is the working pressure of model ZSFZ4X9?

300 PSI (200 / 250 PSI on request) per the product data. The pressure for each size or listed model is in the size table and datasheet.

What approvals does it carry?

UL per the product data. Check the size and listed model in the approval listings, and see how to verify UL and FM approvals.

What end connection does it have?

Flange ASME B16.1 CL125 / ASME B16.42 CL150. Choose the connection that matches the adjacent pipe and fittings.

References

  • ASME B16.42 — Ductile Iron Pipe Flanges and Flanged Fittings: Classes 150 and 300
  • ASME B16.1 — Gray Iron Pipe Flanges and Flanged Fittings
  • AWWA C550 — Protective Interior Coatings for Valves and Hydrants
  • MECH catalogue — Fire fighting valves

This guide is general information to help with selection. Figures come from the product data on this page and the MECH catalogue; final design is by the project’s approved designer to the applicable standards and the project specification.
