MECH GROOVED ECCENTRIC REDUCER (THD) -MODEL 230N

Model 230N

Design standard: ASTM F1548, AWWA C606, ISO 6182-12
Material: Ductile iron ASTM A536 Gr. 65-45-12
Coating: Electrophoretic (std.) — epoxy / hot-dip galvanized optional
Sizes: 4" × 2-1/2" – 6" × 3" (DN100×65 – DN150×80)

Certificates & approvals

FM Approvals FM — MECH Pipe Fittings (threaded & grooved) Verify ↗
UL UL — MECH GROOVED ECCENTRIC REDUCER (THD) -MODEL 230N EX6097 Verify ↗
EPD EPD — MECH Grooved fittings
NSF NSF/ANSI 372 — MECH fittings & valves, lead free (IAPMO R&T) 6047
NSF NSF/ANSI 61 — MECH fittings & valves (IAPMO R&T) N-5941

Build a submittal PDF for this product Certificates centre

SIZES & DIMENSIONS

Sizes & dimensions

Size	DN	Pipe OD (mm)	Max working pressure (PSI)	L Length (mm)	Certificate
4" × 2-1/2"	DN100×65	114.3×76.1	300	102	UL / FM
5" × 3"	DN125×80	139.7×88.9	300	127	UL / FM
6" × 3"	DN150×80	165.1×88.9	300	140	UL / FM

PROJECT APPROVALS

Approved on projects

112 projects and 77 owners approved this product or its family through the project consultants.

All projects

SASREF – supplier registration SASREF (Saudi Aramco) · 2026 Approved Second Masar – prequalification (AAN) Umm Al Qura for Development & Construction (Masar) · 2026 Approved Al Baha Resorts – Khaira Mountain & Ebda Adventure Park Khaira Mountain Entertainment Company · Saudi Consult · 2026 Approved Residence Inn project Residence Inn · Elie & Randa Gebrayel Architects (ERGA) · 2026 Approved King Salman Park King Salman Park Foundation · Saudi Arabian Parsons Ltd. · 2026 Approved Civil Defence requirements implementation – AgriServ National Company for Agricultural Services (AgriServ) · Assuring Codes & Keen Design (ACKD) · 2026 Approved King Abdullah Financial District Project Parsons · 2026 Approved Replacing old generators at domestic airports – prequalification General Authority of Civil Aviation · 2025 Approved Lumi Logistic Park – Tabuk Lumi · Memarion Tabuk Engineering Consultancy · 2025 Approved as supplier Jadwa Investment – firefighting valves Jadwa Investment · Turner & Townsend · 2025 Approved Public buildings – National Guard Housing, Taif Ministry of National Guard · Dar Al Riyadh · 2025 Approved as noted Al Mohawes Tower Al Mohawes · Takatof · 2025 Approved

and 100 more projects.

Original approval letters are provided on request with your submittal.

About this product

MECH 230N ductile iron grooved eccentric reducer with female thread, 4″ × 2-1/2″ – 6″ × 3″, up to 300 PSI, UL / FM. Exclusive MECH agent in Saudi Arabia.

Related products

110MECH GROOVED ELBOW 22.5-MODEL 110

1NMECH GROOVED FLEXIBLE COUPLING -MODEL 1N

مصلب نقاص محزز بسن داخلي (نوع نحيف) MECH موديل 181RX

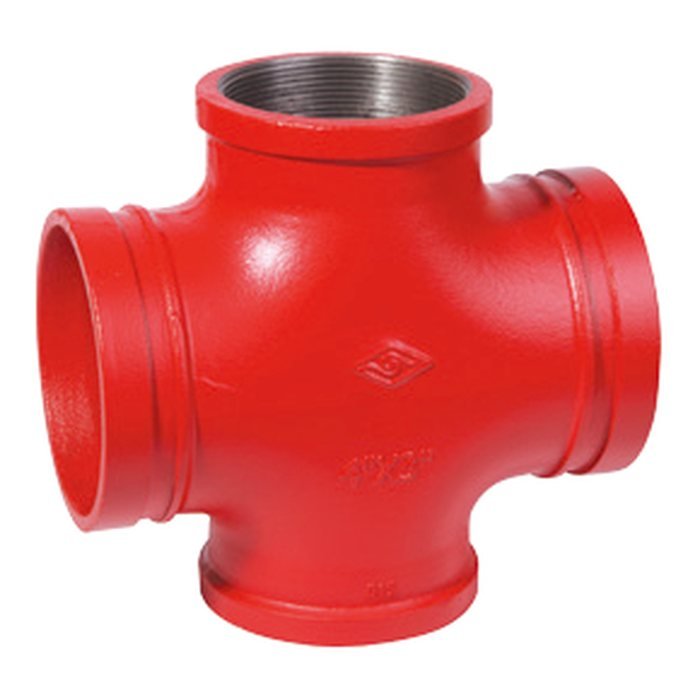

181RXMECH GROOVED REDUCING CROSS (THD) -MODEL 181RX
