MECH MECH GROOVED RIGID COUPLING

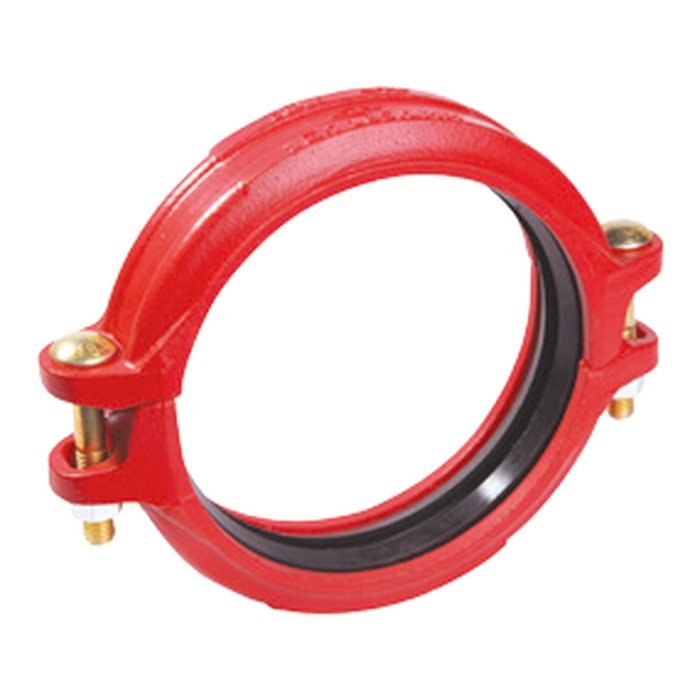

MECH GROOVED ANGLE PAD RIGID COUPLING -MODEL 1GKX

Model 1GKX

Design standard: ASTM F1476, EN 10311
Material: Ductile iron ASTM A536 Gr. 65-45-12
Coating: Electrophoretic (std.) — epoxy / hot-dip galvanized optional
Gasket: Grade "E" EPDM (fire sprinkler)
Sizes: 4" – 8" (DN100 – DN200)

Certificates & approvals

UL UL — MECH GROOVED ANGLE PAD RIGID COUPLING -MODEL 1GKX EX6464 Verify ↗
EPD EPD — MECH Grooved fittings
NSF NSF/ANSI 372 — MECH fittings & valves, lead free (IAPMO R&T) 6047
NSF NSF/ANSI 61 — MECH fittings & valves (IAPMO R&T) N-5941

Build a submittal PDF for this product Certificates centre

SIZES & DIMENSIONS

Sizes & dimensions

Size	DN	Pipe OD (mm)	Max working pressure (PSI)	A (mm)	B (mm)	C (mm)	Bolts (No.-Size)	Certificate
4"	DN100	114.3	300	140.5	177.5	46.5	2-3/8X60 / 2-M10X63	UL
6"	DN150	165.1	300	195	240	49.5	2-1/2X70 / 2-M12X70	UL
8"	DN200	219.1	300	252	319	58	2-5/8X85 / 2-M16X85	UL / FM

PROJECT APPROVALS

Approved on projects

112 projects and 71 owners approved this product or its family through the project consultants.

SASREF – supplier registration 2026 Approved Second Masar – prequalification (AAN) 2026 Approved Al Baha Resorts – Khaira Mountain & Ebda Adventure Park Saudi Consult · 2026 Approved Residence Inn project Residence Inn · Elie & Randa Gebrayel Architects (ERGA) · 2026 Approved King Salman Park King Salman Park Foundation · Saudi Arabian Parsons Ltd. · 2026 Approved Civil Defence requirements implementation – AgriServ National Company for Agricultural Services (AgriServ) · Assuring Codes & Keen Design (ACKD) · 2026 Approved King Abdullah Financial District Project Parsons · 2026 Approved Replacing old generators at domestic airports – prequalification 2025 Approved Lumi Logistic Park – Tabuk Memarion Tabuk Engineering Consultancy · 2025 Approved as supplier Jadwa Investment – firefighting valves Turner & Townsend · 2025 Approved Public buildings – National Guard Housing, Taif Ministry of National Guard · Dar Al Riyadh · 2025 Approved as noted Al Mohawes Tower Al Mohawes · Takatof · 2025 Approved

and 100 more projects.

Original approval letters are provided on request with your submittal.

About this product

MECH 1GKX ductile iron slim-type grooved angle-pad rigid coupling, 4″ – 8″, up to 300 PSI, UL / FM. Exclusive MECH agent in Saudi Arabia.
