Model 3L
| Size | DN | Pipe OD (mm) | Hole diameter (mm) | Max working pressure (PSI) | A (mm) | B (mm) | C (mm) | U Bolt Size (mm) | Certificate |
|---|---|---|---|---|---|---|---|---|---|
| 1-1/4" × 1/2" | DN32×15 | 42.4×21.3 | 30 | 300 | 54.4 | 88.9 | 57.2 | 3/8×73 | UL / FM / VdS |
| 1-1/4" × 3/4" | DN32×20 | 42.4×26.9 | 30 | 300 | 54.4 | 88.9 | 57.2 | 3/8×73 | UL / FM / VdS |
| 1-1/4" × 1" | DN32×25 | 42.4×33.7 | 30 | 300 | 57.7 | 88.9 | 57.2 | 3/8×73 | UL / FM / VdS |
| 1-1/2" × 1/2" | DN40×15 | 48.3×21.3 | 30 | 300 | 57.7 | 88.9 | 57.2 | 3/8×73 | UL / FM / VdS |
| 1-1/2" × 3/4" | DN40×20 | 48.3×26.9 | 30 | 300 | 57.7 | 88.9 | 57.2 | 3/8×73 | UL / FM / VdS |
| 1-1/2" × 1" | DN40×25 | 48.3×33.7 | 30 | 300 | 60.8 | 88.9 | 57.2 | 3/8×73 | UL / FM / VdS |
| 2" × 1/2" | DN50×15 | 60.3×21.3 | 30 | 300 | 63.3 | 95.3 | 57.2 | 3/8×90 | UL / FM / VdS |
| 2" × 3/4" | DN50×20 | 60.3×26.9 | 30 | 300 | 63.3 | 95.3 | 57.2 | 3/8×90 | UL / FM / VdS |
| 2" × 1" | DN50×25 | 60.3×33.7 | 30 | 300 | 66.6 | 96.3 | 57.2 | 3/8×90 | UL / FM / VdS |
| 2" × 1-1/4" | DN50×32 | 60.3×42.4 | 45 | 300 | 66.6 | 120 | 76 | 1/2×52 | — |
| 2-1/2" × 1/2" | DN65×15 | 73.0×21.3 | 30 | 300 | 66.9 | 108.0 | 57.2 | 3/8×105 | UL / FM |
| 2-1/2" × 3/4" | DN65×20 | 73.0×26.9 | 30 | 300 | 66.9 | 108.0 | 57.2 | 3/8×105 | UL / FM |
| 2-1/2" × 1" | DN65×25 | 73.0×33.7 | 30 | 300 | 73.2 | 108.0 | 57.2 | 3/8×105 | UL / FM |
| 2-1/2" × 1/2" | DN65×15 | 76.1×21.3 | 30 | 300 | 66.9 | 108.0 | 57.2 | 3/8×105 | UL / FM / VdS |
| 2-1/2" × 3/4" | DN65×20 | 76.1×26.9 | 30 | 300 | 66.9 | 108.0 | 57.2 | 3/8×105 | UL / FM / VdS |
| 2-1/2" × 1" | DN65×25 | 76.1×33.7 | 30 | 300 | 73.2 | 108.0 | 57.2 | 3/8×105 | UL / FM / VdS |
| 3" × 1" | DN80×25 | 88.9×33.7 | 38 | 300 | 79 | 145 | 73 | 1/2×58 | UL / FM / VdS |
| 4" × 1" | DN100×25 | 114.3×33.7 | 30 | 300 | 89 | 185 | 72 | 1/2×70 | FM |
| 4" × 1-1/4" | DN100×32 | 114.3×42.4 | 51 | 300 | 95 | 185 | 85 | 1/2×70 | FM |
| 4" × 1-1/2" | DN100×40 | 114.3×48.3 | 51 | 300 | 95 | 185 | 85 | 1/2×70 | FM |
| 6" × 1" | DN150×25 | 168.3×33.7 | 38 | 300 | 124 | 254 | 75 | 5/8×102 | FM |
| 6" × 1-1/4" | DN150×32 | 168.3×42.4 | 51 | 300 | 120 | 254 | 88 | 5/8×102 | FM |
| 6" × 1-1/2" | DN150×40 | 168.3×48.3 | 57 | 300 | 120 | 254 | 88 | 5/8×102 | FM |
112 projects and 77 owners approved this product or its family through the project consultants.
and 100 more projects.
Original approval letters are provided on request with your submittal.

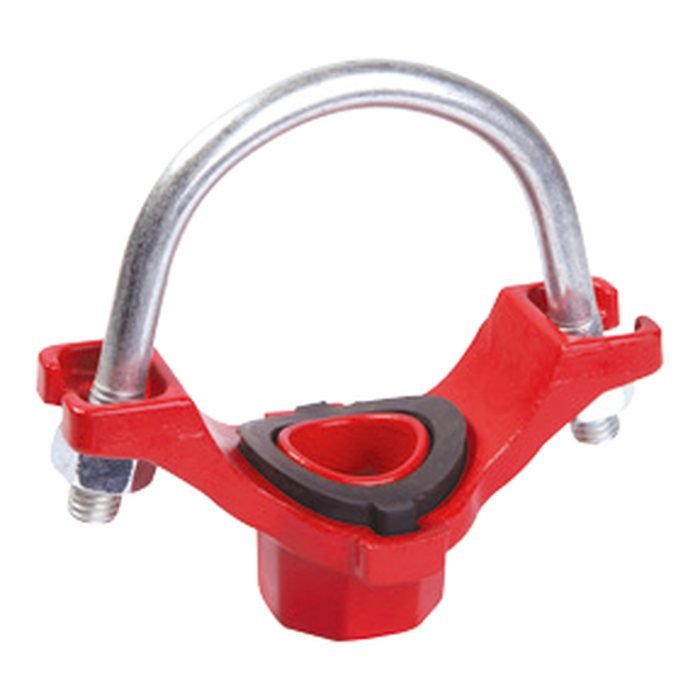

MECH 3L ductile iron U-bolt mechanical tee, 1-1/4″ × 1/2″ – 6″ × 1-1/2″, up to 300 PSI, UL / FM / VdS. Exclusive MECH agent in Saudi Arabia.
