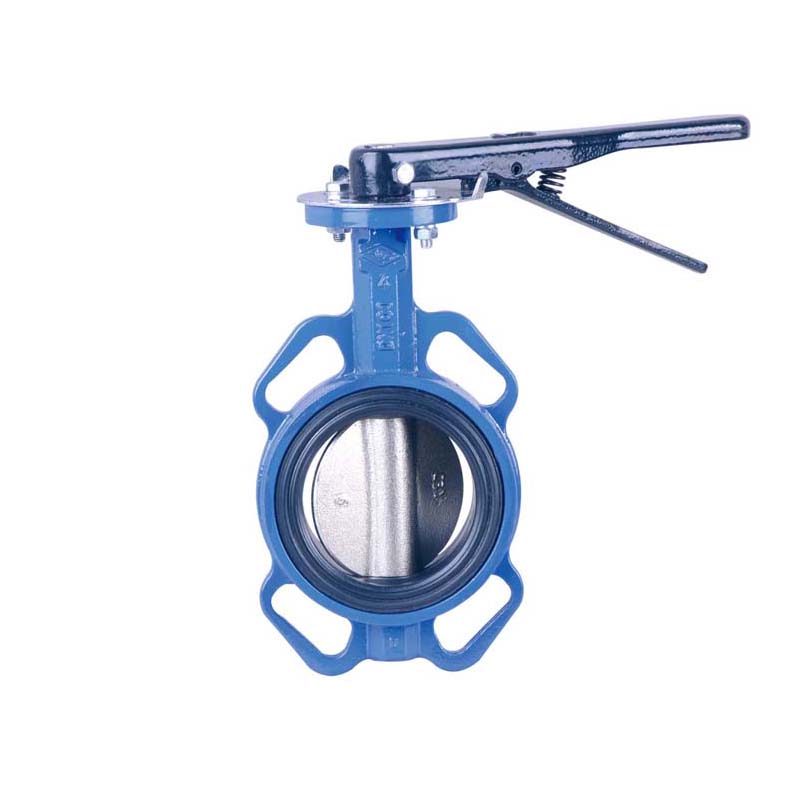

رقم الموديل D71X4
اطلب شهادات هذا المنتج ونرسلها لك.
| المقاس | DN | A (mm) | B (mm) | V (mm) | C (mm) | ØD (mm) | Ø2 (mm) | ØK (mm) | G | L الطول (mm) | ØD1 (mm) | N-Ø1 | ISO 5211 | Ø3 (mm) | H الارتفاع (mm) | H1 (mm) | H2 (mm) | P (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5" | DN40 | 138 | 64.5 | 32 | 33 | 43.9 | 14 | 90 | 9.45 | 267 | 98.5 | 4-Ø15.9 | F07 | 150 | 206 | 158 | 52 | 43.5 |
| 2" | DN50 | 140.5 | 64.5 | 32 | 43 | 53.9 | 14 | 90 | 9.53 | 267 | 120.7 | 4-Ø19.1 | F07 | 150 | 206 | 158 | 52 | 43.5 |
| 2.5" | DN65 | 153 | 72 | 32 | 46 | 65.2 | 14 | 90 | 9.53 | 267 | 139.7 | 4-Ø19.1 | F07 | 150 | 206 | 158 | 52 | 43.5 |
| 3" | DN80 | 157.5 | 86 | 32 | 46 | 79.7 | 14 | 90 | 9.53 | 267 | 152.4 | 4-Ø19.1 | F07 | 150 | 206 | 158 | 52 | 43.5 |
| 4" | DN100 | 176 | 100 | 32 | 52 | 105 | 16 | 90 | 11.14 | 267 | 190.5 | 8-Ø19.1 | F07 | 150 | 206 | 158 | 52 | 43.5 |
| 5" | DN125 | 191 | 112 | 32 | 56 | 130 | 16 | 90 | 11.14 | 267 | 215.9 | 8-Ø22.2 | F07 | 150 | 206 | 158 | 52 | 43.5 |
| 6" | DN150 | 202.5 | 128 | 32 | 56 | 156 | 20 | 90 | 12.7 | 267 | 241.3 | 8-Ø22.2 | F07 | 150 | 206 | 158 | 52 | 43.5 |
| 8" | DN200 | 243.5 | 162 | 45 | 60 | 206.7 | 26 | 125 | 20.6 | 356 | 298.5 | 8-Ø22.2 | F10 | 300 | 310 | 239 | 69 | 62.5 |
| 10" | DN250 | 273 | 194 | 45 | 68 | 253.3 | 26 | 125 | 20.6 | 490 | 362 | 12-Ø25.4 | F10 | 300 | 310 | 239 | 69 | 62.5 |
| 12" | DN300 | 311 | 223 | 45 | 78 | 301.9 | 28 | 125 | 22.1 | 490 | 431.8 | 12-Ø25.4 | F10 | 300 | 307 | 229 | 73 | 77.5 |
| 14" | DN350 | 340 | 267 | 48 | 78 | 333.9 | 31.6 | 150 | 22.1 | - | 476.3 | 12-Ø25.4 | F12 | 300 | 307 | 229 | 73 | 77.5 |
| 16" | DN400 | 400 | 319.5 | 48 | 102 | 389.6 | 33.2 | 175 | 27 | - | 539.8 | 16-Ø25.4 | F14 | 380 | 418 | 288 | 110 | 120 |
| 18" | DN450 | 422 | 345.4 | 48 | 114 | 441 | 38.1 | 175 | 27 | - | 577.9 | 16-Ø28.6 | F14 | 380 | 418 | 288 | 110 | 120 |
| 20" | DN500 | 480 | 380 | 70.2 | 127 | 492.4 | 41.2 | 210 | - | - | 635 | 20-Ø28.6 | F16 | 380 | 465 | 215 | 123 | 185 |
| 24" | DN600 | 562 | 441 | 70.2 | 154 | 592.8 | 50.6 | 210 | - | - | 749.3 | 20-Ø31.8 | F16 | 380 | 500 | 215 | 129 | 185 |
| 28" | DN700 | 575 | 505 | 70.2 | 165 | 695 | 63.4 | 300 | - | - | 864 | 28-Ø35.1 | F25 | 380 | 543 | 213 | 132 | 218 |
| 30" | DN750 | 660 | 550 | 70.2 | 165 | 744 | 63.4 | 300 | - | - | 914.4 | 28-Ø31.8 | F25 | 380 | 543 | 213 | 132 | 218 |
| 32" | DN800 | 667 | 577 | 70.2 | 190 | 795.7 | 63.4 | 300 | - | - | 977.9 | 28-Ø41.4 | F25 | 380 | 543 | 213 | 132 | 218 |
