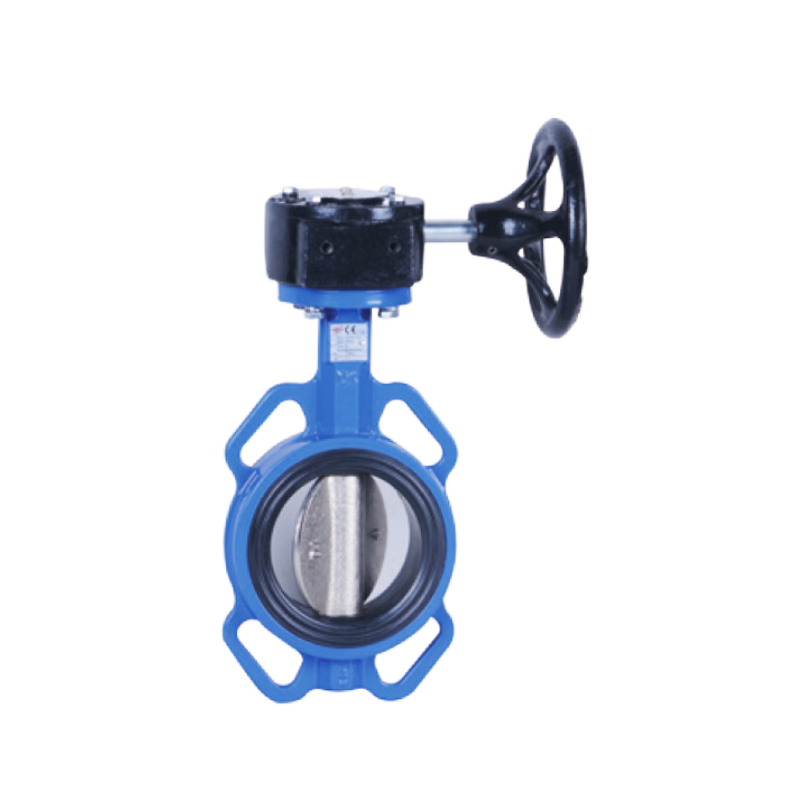

رقم الموديل D371X205
اطلب شهادات هذا المنتج ونرسلها لك.
| المقاس | DN | A (mm) | B (mm) | C (mm) | φD (mm) | φD1 (mm) | N-Ø | φ2 (mm) | V (mm) | G | ISO 5211 | L الطول (mm) | φ3 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2" | DN50 | 140.5 | 64.5 | 43 | 53.9 | 120.7 | 4-φ19 | 14 | 32 | 9.53 | F05 | 132 | 200 |
| 2.5" | DN65 | 153 | 72 | 46 | 65.2 | 139.7 | 4-φ19 | 14 | 32 | 9.53 | F05 | 132 | 200 |
| 3" | DN80 | 157.5 | 86 | 46 | 79.7 | 152.4 | 4-φ19 | 14 | 32 | 9.53 | F05 | 132 | 200 |
| 4" | DN100 | 176 | 100 | 52 | 105 | 190.5 | 8-φ19 | 16 | 32 | 11.4 | F05 | 132 | 200 |
| 5" | DN125 | 191 | 112 | 56 | 130 | 215.9 | 8-φ23 | 16 | 32 | 11.4 | F07 | 132 | 200 |
| 6" | DN150 | 202.5 | 128 | 56 | 156 | 241.3 | 8-φ23 | 20 | 32 | 12.7 | F07 | 132 | 200 |
| 8" | DN200 | 243.5 | 162 | 60 | 206.7 | 298.5 | 8-φ23 | 26 | 45 | 20.6 | F10 | 225 | 290 |
| 10" | DN250 | 273 | 194 | 68 | 253.3 | 362 | 12-φ25 | 26 | 45 | 20.6 | F10 | 225 | 290 |
| 12" | DN300 | 311 | 223 | 78 | 301.9 | 431.8 | 12-φ25 | 28 | 45 | 22.1 | F10 | 215 | 290 |
| 14" | DN350 | 340 | 267 | 78 | 333.9 | 476.3 | 12-φ28.5 | 31.6 | 48 | 22.1 | F12 | 215 | 290 |
| 16" | DN400 | 400 | 320 | 102 | 389.6 | 539.8 | 16-φ28.5 | 33.2 | 48 | 27 | F14 | 270 | 410 |
| 18" | DN450 | 422 | 345 | 114 | 441 | 577.9 | 16-φ32 | 38.1 | 48 | 27 | F14 | 270 | 410 |
| 20" | DN500 | 480 | 380 | 127 | 492.4 | 635 | 20-φ32 | 41.2 | 70.2 | - | F16 | 318 | 410 |
| 24" | DN600 | 562 | 441 | 154 | 592.8 | 749.3 | 20-φ35 | 50.6 | 70.2 | - | F16 | 333 | 410 |
