MECH MECH GROOVED MECHANICAL CROSS (GRVD)

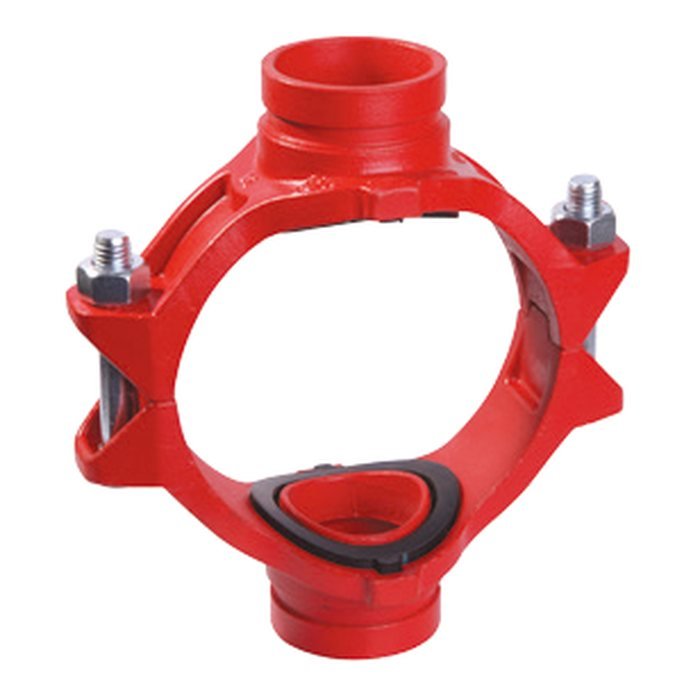

MECH GROOVED MECH CROSS (GRVD) -MODEL 4G

Model 4G

Design standard: ASTM F1548, AWWA C606, ISO 6182-12
Material: Ductile iron ASTM A536 Gr. 65-45-12
Coating: Electrophoretic (std.) — epoxy / hot-dip galvanized optional
Gasket: Grade "E" EPDM (fire sprinkler)
Sizes: 2" × 1-1/4" – 10" × 4" (DN50×32 – DN250×100)

Request a quote for this product

Size Quantity

Or buy from the online store

Certificates & approvals

FM Approvals FM — MECH Mechanical Tees 3G / 3J / 3JX Verify ↗
UL UL — MECH GROOVED MECH CROSS (GRVD) -MODEL 4G EX6464 Verify ↗
EPD EPD — MECH Grooved fittings
NSF NSF/ANSI 372 — MECH fittings & valves, lead free (IAPMO R&T) 6047
NSF NSF/ANSI 61 — MECH fittings & valves (IAPMO R&T) N-5941

Build a submittal PDF for this product Certificates centre

SIZES & DIMENSIONS

Sizes & dimensions

Size	DN	Pipe OD (mm)	Max working pressure (PSI)	Hole diameter (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Bolt size	Certificate
2" × 1-1/4"	DN50×32	60.3×42.4	300	45	116	76	69.5	69.5	3/8×55 / M10X57	UL / FM
2" × 1-1/2"	DN50×40	60.3×48.3	300	45	116	76	69.5	69.5	3/8×55 / M10X57	UL / FM
2-1/2" × 1-1/4"	DN65×32	73.0×42.4	300	51	144	84.5	75	75	1/2×70 / M12X70	UL / FM
2-1/2" × 1"	DN65×25	76.1×33.7	300	38	137	71	78	78	1/2×70 / M12X70	UL / FM
2-1/2" × 1-1/4"	DN65×32	76.1×42.4	300	51	137	84.5	78	78	1/2×70 / M12X70	UL / FM
3" × 1"	DN80×25	88.9×33.7	300	38	152	72.5	84.5	84.5	1/2X75 / M12X76	—
3" × 1-1/4"	DN80×32	88.9×42.4	300	51	152	85.5	84.5	84.5	1/2×75 / M12X76	UL / FM
3" × 1-1/2"	DN80×40	88.9×48.3	300	51	152	85.5	84.5	84.5	1/2×75 / M12X76	UL / FM
3" × 2"	DN80×50	88.9×60.3	300	64	152	98	84.5	84.5	1/2×75 / M12X76	UL / FM
4" × 1"	DN100×25	114.3×33.7	300	38	188	78.4	102	102	1/2×75 / M12X76	—
4" × 1-1/4"	DN100×32	114.3×42.4	300	51	188	89	102	102	1/2×75 / M12X76	UL / FM
4" × 1-1/2"	DN100×40	114.3×48.3	300	51	188	89	102	102	1/2×75 / M12X76	UL / FM
4" × 2"	DN100×50	114.3×60.3	300	64	188	104.5	102	102	1/2×75 / M12X76	UL / FM
4" × 2-1/2"	DN100×65	114.3×76.1	300	70	188	104.5	102	102	1/2×75 / M12X76	UL / FM
4" × 3"	DN100×80	114.3×88.9	300	89	188	128	102	102	1/2X75 / M12X76	UL / FM
5" × 2"	DN125×50	139.7×60.3	300	64	221.5	112.5	118	118	5/8×85 / M16X85	UL / FM
5" × 2-1/2"	DN125×65	139.7×76.1	300	70	221.5	112.5	118	118	5/8×85 / M16X85	—
5" × 3"	DN125×80	139.7×88.9	300	89	221.5	132	118	118	5/8×85 / M16X85	UL / FM
5" × 4"	DN125×100	139.7×114.3	300	114	221.5	160	125	125	5/8×85 / M16X85	—
6" × 2"	DN150×50	165.1×60.3	300	64	244	112.5	127	127	5/8X105	UL / FM
6" × 2-1/2"	DN150×65	165.1×76.1	300	70	244	112.5	127	127	5/8×105 / M16X108	UL / FM
6" × 3"	DN150×80	165.1×88.9	300	89	244	132	141	141	5/8×105 / M16X108	UL / FM
6" × 1-1/2"	DN150×40	168.3×48.3	300	51	247	95	128	128	5/8×105 / M16X108	UL / FM
6" × 2"	DN150×50	168.3×60.3	300	64	247	114	134	134	5/8×105 / M16X108	UL / FM
6" × 2-1/2"	DN150×65	168.3×73.0	300	70	247	115	134	134	5/8×105 / M16X108	UL / FM
6" × 3"	DN150×80	168.3×88.9	300	89	247	132	141	141	5/8×105 / M16X108	UL / FM
6" × 4"	DN150×100	159.1×108.0	300	114	244	154	133	133	5/8×105 / M16X108	—
6" × 4"	DN150×100	159.1×114.3	300	114	244	159	125	125	5/8×105 / M16X108	—
6" × 1-1/2"	DN150×40	165.1×48.3	300	51	244	93	128.5	128.5	5/8×105 / M16X108	—
6" × 4"	DN150×100	165.1×114.3	300	114	244	154	135	135	5/8×105 / M16X108	—
6" × 2-1/2"	DN150×65	168.3×76.1	300	70	247	112.5	135	135	5/8×105 / M16X108	—
6" × 4"	DN150×100	168.3×114.3	300	114	247	160	138	138	5/8×105 / M16X108	UL / FM
8" × 2"	DN200×50	219.1×60.3	300	64	320	118	158	158	3/4×115 / M20X115	—
8" × 2-1/2"	DN200×65	219.1×76.1	300	70	320	118	158	158	3/4×115 / M20X115	—
8" × 3"	DN200×80	219.1×88.9	300	89	320	136.5	161	161	3/4×115 / M20X115	—
8" × 4"	DN200×100	219.1×108.0	300	114	320	162	161	161	3/4×115 / M20X115	—
8" × 4"	DN200×100	219.1×114.3	300	114	320	162	161	161	3/4×115 / M20X115	—
10" × 2-1/2"	DN250×65	273.0×76.1	300	70	376	118	189	189	3/4×120 / M20X115	—
10" × 3"	DN250×80	273.0×88.9	300	89	376	136.5	189	189	3/4×120 / M20X115	—
10" × 4"	DN250×100	273.0×108.0	300	114	376	164	189	189	3/4×115 / M20X115	—
10" × 4"	DN250×100	273.0×114.3	300	114	376	164	189	189	3/4×120 / M20X115	UL / FM

PROJECT APPROVALS

Approved on projects

112 projects and 77 owners approved this product or its family through the project consultants.

All projects

SASREF – supplier registration SASREF (Saudi Aramco) · 2026 Approved Second Masar – prequalification (AAN) Umm Al Qura for Development & Construction (Masar) · 2026 Approved Al Baha Resorts – Khaira Mountain & Ebda Adventure Park Khaira Mountain Entertainment Company · Saudi Consult · 2026 Approved Residence Inn project Residence Inn · Elie & Randa Gebrayel Architects (ERGA) · 2026 Approved King Salman Park King Salman Park Foundation · Saudi Arabian Parsons Ltd. · 2026 Approved Civil Defence requirements implementation – AgriServ National Company for Agricultural Services (AgriServ) · Assuring Codes & Keen Design (ACKD) · 2026 Approved King Abdullah Financial District Project Parsons · 2026 Approved Replacing old generators at domestic airports – prequalification General Authority of Civil Aviation · 2025 Approved Lumi Logistic Park – Tabuk Lumi · Memarion Tabuk Engineering Consultancy · 2025 Approved as supplier Jadwa Investment – firefighting valves Jadwa Investment · Turner & Townsend · 2025 Approved Public buildings – National Guard Housing, Taif Ministry of National Guard · Dar Al Riyadh · 2025 Approved as noted Al Mohawes Tower Al Mohawes · Takatof · 2025 Approved

and 100 more projects.

Original approval letters are provided on request with your submittal.

About this product

MECH 4G ductile iron mechanical cross with grooved outlets, 2″ × 1-1/4″ – 10″ × 4″, up to 300 PSI, UL / FM. Exclusive MECH agent in Saudi Arabia.
