MECH MECH GROOVED B.F.V TAMPER UL/FM RED

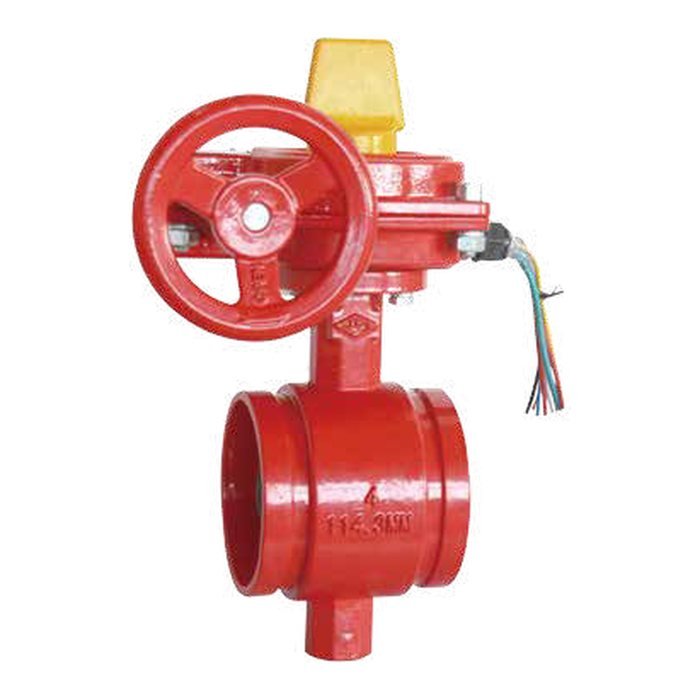

MECH GROOVED BUTTERFLY VALVE WITH TAMPER SWITCH UL/FM RED MODEL XD381X

Model XD381X

Design standard: MSS SP-67
Connection ends: Groove AWWA C606
Top flange: ISO 5211
Working pressure: 300 / 363 PSI (175 / 200 / 250 PSI on request)
Temperature: 4 – 60 °C
Coating: FBE — ANSI/AWWA C550
Tamper switch: 16 A, 1/2 HP, 125/250 VAC
Approvals: UL / FM / VdS
Sizes: 2" – 12" (DN50 – DN300)

Certificates & approvals

Build a submittal PDF for this product Certificates centre

SIZES & DIMENSIONS

Sizes & dimensions

Size	DN	A (mm)	B (mm)	C (mm)	F Pipe OD (mm)	G Groove diameter (mm)	L Length (mm)	L1 (mm)	L2 (mm)	H1 (mm)	H (mm)	W (mm)	ΦE (mm)	ΦF (mm)	N-ΦM	ISO 5211
2"	DN50	89	65	81	60.3	57.15	122.5	7.93	15.88	127	202.2	125	70	90	4-Φ10	F07
2-1/2"	DN65	102	71	97	73.0	69.09	122.5	7.93	15.88	127	202.2	125	70	90	4-Φ10	F07
3"	DN80	109	81	97	88.9	84.94	122.5	7.93	15.88	127	202.2	125	70	90	4-Φ10	F07
4"	DN100	128	95	116	114.3	110.08	122.5	9.53	15.88	127	202.2	125	70	90	4-Φ10	F07
5"	DN125	141	111	148	141.3	137.03	122.5	9.53	15.88	127	202.2	125	70	90	4-Φ10	F07
6"	DN150	153	133	148	168.3	163.96	122.5	9.53	15.88	139.5	215	225	70	90	4-Φ10	F07
8"	DN200	184	164	133	219.1	214.40	122.5	11.10	19.05	198.5	274	225	102	125	4-Φ12	F10
10"	DN250	216	196	159	273.1	268.28	122.5	12.70	19.05	198.5	274	225	102	125	4-Φ12	F10
12"	DN300	254	226	165	323.9	318.29	132.0	12.70	19.05	198.5	293.5	225	102	125	4-Φ12	F10

PROJECT APPROVALS

Approved on projects

98 projects and 61 owners approved this product or its family through the project consultants.

Al Baha Resorts – Khaira Mountain & Ebda Adventure Park Khaira Mountain Entertainment Company · Saudi Consult · 2026 Approved SASREF – supplier registration SASREF (Saudi Aramco) · 2026 Approved Second Masar – prequalification (AAN) Umm Al Qura for Development & Construction (Masar) · 2026 Approved Rakaa project Rakaa Holding · ARIS Engineering Consultants · 2026 Approved Child Oxford Fertility Excellence – Riyadh NIAN · Balance Architects & Engineering Consultants · 2026 Code A – Approved Lenovo project – firefighting valves Lenovo · Savills / MAB Consult · 2026 Approved Royal Commission for Jubail & Yanbu – prequalification Royal Commission for Jubail and Yanbu · 2026 Code B – Approved New Operational Offices at TL3 & AOCC – King Khalid International Airport Riyadh Airports Company · Egis · 2026 Approved MODON – Hail 1st Industrial City project (valves) MODON · Egis · 2026 Approved Beach Club Project – Yanbu Al Sinaiyah BAHEEJ · Talal Yehyah Afshan Consultant (TYA) · 2026 Approved King Salman Park King Salman Park Foundation · Saudi Arabian Parsons Ltd. · 2026 Approved Civil Defence requirements implementation – AgriServ National Company for Agricultural Services (AgriServ) · Assuring Codes & Keen Design (ACKD) · 2026 Approved

and 86 more projects.

Original approval letters are provided on request with your submittal.

About this product

MECH XD381X grooved butterfly valve with tamper switch, groove to AWWA C606, 2″–12″, 300 / 363 PSI, UL/FM/VdS. Exclusive MECH agent in Saudi Arabia.

Related products

MECH PRESSURE SWITCH MODEL : YLKG 10

YLKG 10MECH PRESSURE SWITCH MODEL : YLKG 10

محبس بوابة NRS فلنجة × وصلة ميكانيكية UL أحمر MECH موديل Z05X

Z05XMECH GATE VALVE NRS FLANGE x MECHANICAL JOINT UL RED MODEL Z05X

حنفية حريق جافة بوصلة ميكانيكية UL/FM MECH موديل SSF-J

SSF-JMECH MECHANICAL JOINT DRY BARREL FIRE HYDRANT UL/FM MODEL SSF-J

محبس بوابة NRS فلنجة × محزز UL أحمر MECH موديل Z55X

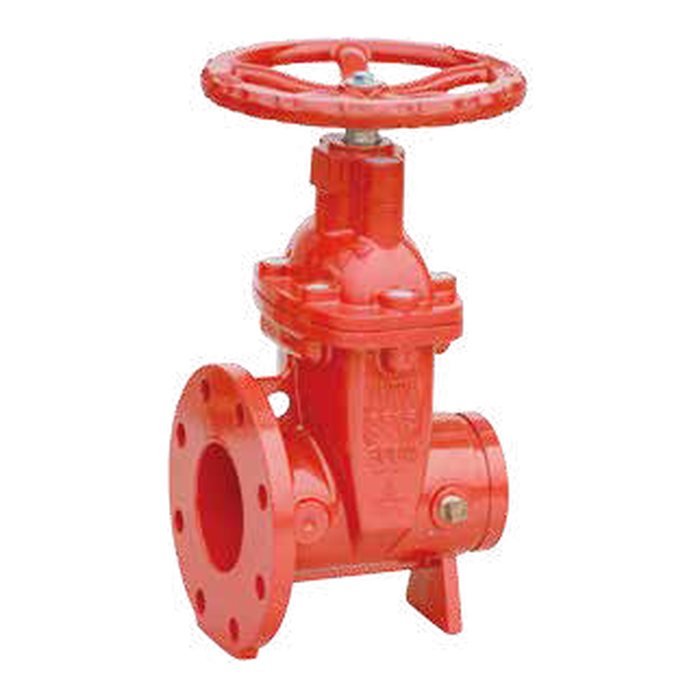

Z55XMECH GATE VALVE NRS FLANGE x GROOVE UL RED MODEL Z55X
