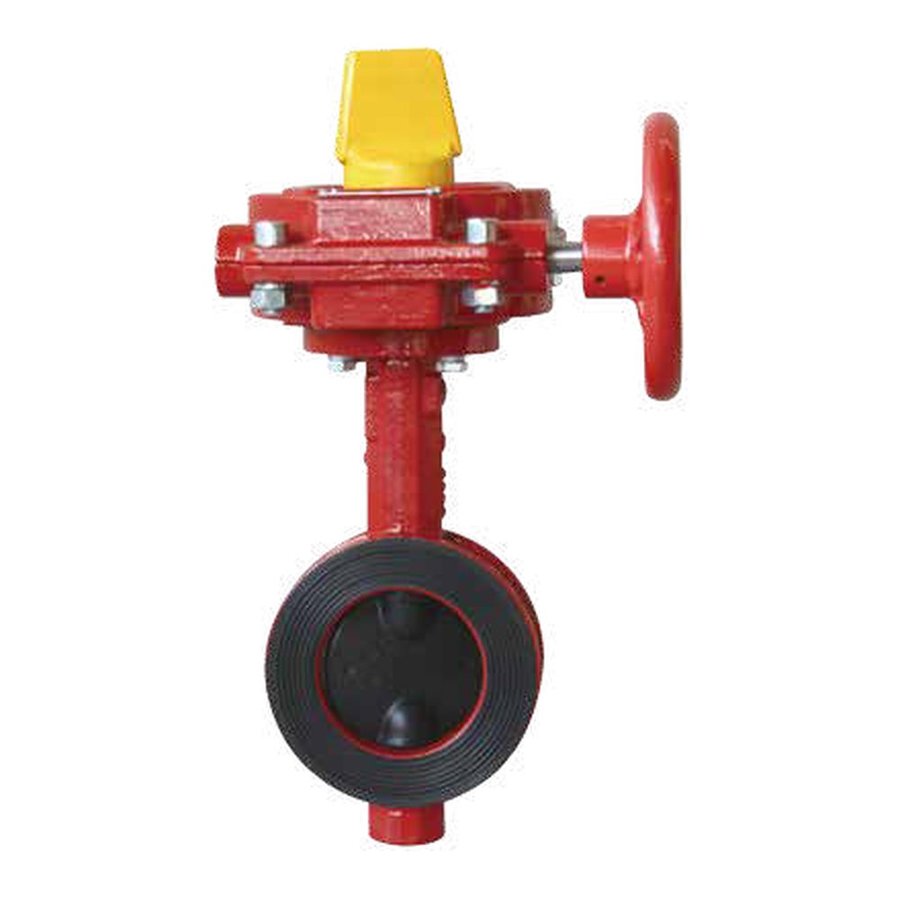

MECH WAFER BUTTERFLY VALVE UL/FM RED MODEL D371X

Model D371X

Connection ends
Wafer
Working pressure
D371X-300 / D371X80 / D371X9-300: 300 psig; D371X-PN16 / D371XB-PN25: 363 psig
Approvals
UL / FM
Listed models
D371X-300, D371X-PN16, D371X80-300, D371X80-PN16, D371X9-300 (2"–8"), D371XB-PN25
Sizes
2" – 12"
Request a quote for this product
Or buy from the online store
SIZES & DIMENSIONS

Sizes & dimensions

SizeDNA (mm)B (mm)C (mm)L Length (mm)H1 (mm)H Height (mm)W (mm)ISO 5211ΦE (mm)ΦF (mm)N-ΦM
2"DN50140.56543122.5127202.2125F0770904-Φ10
2.5"DN651537146122.5127202.2125F0770904-Φ10
3"DN80157.58146122.5127202.2125F0770904-Φ10
4"DN1001769552122.5127202.2125F0770904-Φ10
5"DN12519111156122.5127202.2125F0770904-Φ10
6"DN150202.513356122.5139.5215225F0770904-Φ10
8"DN200243.516460122.5198.5274225F101021254-Φ12
10"DN25027319668122.5198.5274225F101021254-Φ12
12"DN30031122678132198.5293.5225F101021254-Φ12
PROJECT APPROVALS

Approved on projects

98 projects and 61 owners approved this product or its family through the project consultants.

and 86 more projects.

Original approval letters are provided on request with your submittal.

The MECH wafer butterfly valve ul/fm red, model D371X, sizes 2″ – 12″, working pressure D371X-300 / D371X80 / D371X9-300: 300 psig; D371X-PN16 / D371XB-PN25: 363 psig, UL / FM approved. An indicating control valve that opens and closes in a quarter turn through a gear operator that shows its position. This guide explains what it does and how it works, related models, technical data, the critical point in selection and installation, and common mistakes. For more, read the guide butterfly valves in fire protection.

At a glance

  • A butterfly valve controls flow with a disc that rotates on a shaft inside the body: parallel to the flow when open, across it when closed.
  • Sizes 2″ – 12″.
  • Working pressure D371X-300 / D371X80 / D371X9-300: 300 psig; D371X-PN16 / D371XB-PN25: 363 psig.
  • Approvals: UL / FM.
  • Connection: Wafer.

Butterfly valve: what it does and how it works

A butterfly valve controls flow with a disc that rotates on a shaft inside the body: parallel to the flow when open, across it when closed. It is driven by a handwheel gear operator so it closes slowly, with an indicator showing its position (open / shut).

In fire systems it is used as a control valve on supplies, risers and valve rooms. Many models carry a supervisory (tamper) switch that signals the alarm panel when the valve is moved from fully open, because fire-protection standards require control valves to be supervised.

Related models

butterfly valve family
ModelProductSizesPressureApprovals
D371X — this productWAFER BUTTERFLY VALVE UL/FM RED2″ – 12″D371X-300 / D371X80 / D371X9-300: 300 psUL / FM
D381XGROOVED BUTTERFLY VALVE UL/FM RED2″ – 12″ (DN50 – DN300)D381X-300 / D381X80-300: 300 psig; D381XUL / FM
XD371XGWAFER BUTTERFLY VALVE NORMALLY CLOSED TAMPER SWITCH UL RED2″ – 12″ (DN50 – DN300)300 PSIUL
XD381XCGROOVED BUTTERFLY VALVE TAPPED BODY TAMPER SWITCH UL RED2″ – 12″ (DN50 – DN300)363 PSIUL
XD381XGGROOVED BUTTERFLY VALVE NORMALLY CLOSED TAMPER SWITCH UL RED2″ – 12″ (DN50 – DN300)363 PSIUL
XD381XGROOVED BUTTERFLY VALVE WITH TAMPER SWITCH UL/FM RED2″ – 12″ (DN50 – DN300)300 / 363 PSIUL / FM / VdS
XD311XTHREADED B.F.V TAMPER RED1″ – 2″ (DN25 – DN50)175 PSIUL / FM
D81X4GROOVED B.F.V LEVER RED2″ – 12″ (DN50 – DN300)300 PSI—
XD371XWAFER B.F.V TAMPER UL/FM ANSI RED 3″ M: XD371X2″ – 12″ (DN50 – DN300)300 / 363 PSIUL / FM / VdS

Technical data

Specification of model D371X
ItemSpecification
Connection endsWafer
Working pressureD371X-300 / D371X80 / D371X9-300: 300 psig; D371X-PN16 / D371XB-PN25: 363 psig
ApprovalsUL / FM
Listed modelsD371X-300, D371X-PN16, D371X80-300, D371X80-PN16, D371X9-300 (2″–8″), D371XB-PN25
Sizes2″ – 12″

Disc clearance when open

When open, the disc projects beyond the body on both sides. Fitted directly against a check valve, strainer or narrow fitting it may strike it and not open fully. Check the disc dimensions on the datasheet and add a spacer where needed.

Caution

Wire the supervisory switch to the alarm panel per NFPA 72 and the project drawings, and never leave the valve partly closed.

Installation steps

  1. Check the end type (wafer, grooved or threaded) and flange standard match the line.
  2. Open the valve slightly before fitting so the seat is not damaged, then install between flanges or with grooved couplings as applicable.
  3. Check disc clearance with adjacent fittings, then cycle the valve fully open and shut after installation.
  4. Wire the supervisory switch and test that the signal reaches the alarm panel.

Common mistakes

  • Fitting it against a component the disc strikes.
  • Tightening flange bolts with the valve fully shut, damaging the seat.
  • Leaving the supervisory switch unwired or untested.

Files and ordering

On this page: Product page (catalogue), Product datasheet, MECH Fire Protection Valves Catalogue (UL/FM), Material Safety Data Sheet (MSDS). Add the product to your request list with size and quantity and we send a quotation, or build a submittal PDF for the consultant. Fu-Mech is the exclusive MECH agent in Saudi Arabia.

Frequently asked questions

Why is it gear-operated?

Fast closure causes water hammer, and standards require indicating control valves to close slowly. The gear operator slows the movement and shows the position.

What does the supervisory switch do?

It sends a supervisory signal to the alarm panel when the valve is moved from fully open, so any unintended closure is known. See pressure and supervisory switches.

What is the working pressure of model D371X?

D371X-300 / D371X80 / D371X9-300: 300 psig; D371X-PN16 / D371XB-PN25: 363 psig per the product data. The pressure for each size or listed model is in the size table and datasheet.

What approvals does it carry?

UL / FM per the product data. Check the size and listed model in the approval listings, and see how to verify UL and FM approvals.

What end connection does it have?

Wafer. Choose the connection that matches the adjacent pipe and fittings.

References

  • MECH catalogue — Fire fighting valves

This guide is general information to help with selection. Figures come from the product data on this page and the MECH catalogue; final design is by the project’s approved designer to the applicable standards and the project specification.
