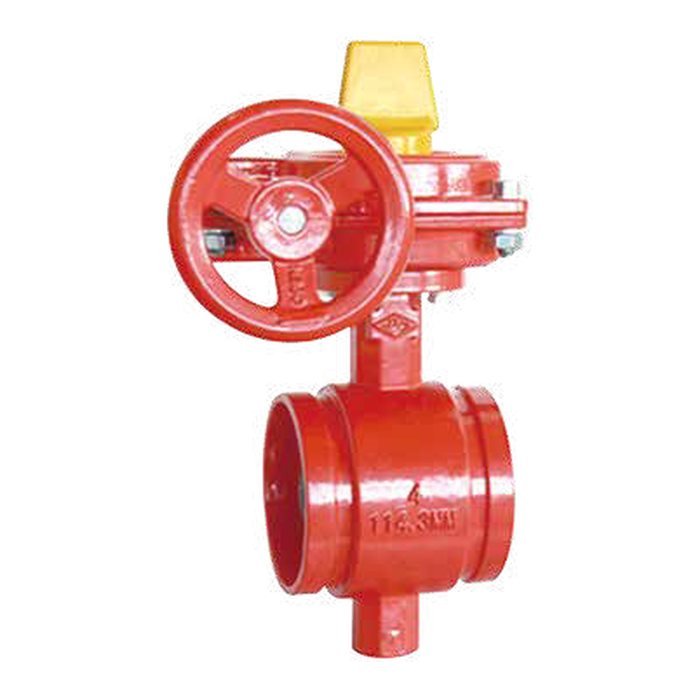

MECH GROOVED BUTTERFLY VALVE UL/FM RED MODEL D381X
Model D381X
- Design standard
- MSS SP-67
- Connection ends
- Groove AWWA C606
- Top flange
- ISO 5211
- Working pressure
- D381X-300 / D381X80-300: 300 psig; D381X-PN16: 232 psig; D381XB-PN16: 363 psig
- Temperature
- 4 – 60 °C
- Coating
- FBE — ANSI/AWWA C550
- Approvals
- UL / FM
- Listed models
- D381X-300, D381X-PN16, D381X80-300, D381XB-PN16
- Sizes
- 2" – 12" (DN50 – DN300)
Certificates & approvals
- FM Approvals FM — MECH Grooved Butterfly Valve with Tamper Switch XD381X / D381X Verify ↗
- UL UL — MECH GROOVED BUTTERFLY VALVE UL/FM RED MODEL D381X-300 EX26413 Verify ↗
- UL UL — MECH GROOVED BUTTERFLY VALVE UL/FM RED MODEL D381X-PN16 EX26413
- UL UL — MECH GROOVED BUTTERFLY VALVE UL/FM RED MODEL D381X80-300 EX26413
- UL UL — MECH GROOVED BUTTERFLY VALVE UL/FM RED MODEL D381XB-PN16 EX26413
- EPD EPD — MECH Valves
- Other GSK — MECH corrosion protection coating
- NSF NSF/ANSI 372 — MECH fittings & valves, lead free (IAPMO R&T) 6047
- NSF NSF/ANSI 61 — MECH fittings & valves (IAPMO R&T) N-5941
